Description
Range
110km
Battery
Das-Kit, I6, 48V 12Ah, 576Wh
Motor
Das-Kit X15 Motor, 48V 250W
Speed
Restricted to 25km/h
Brakes
Tektro Hydraulic Disc
Tyres
26 x 1.95

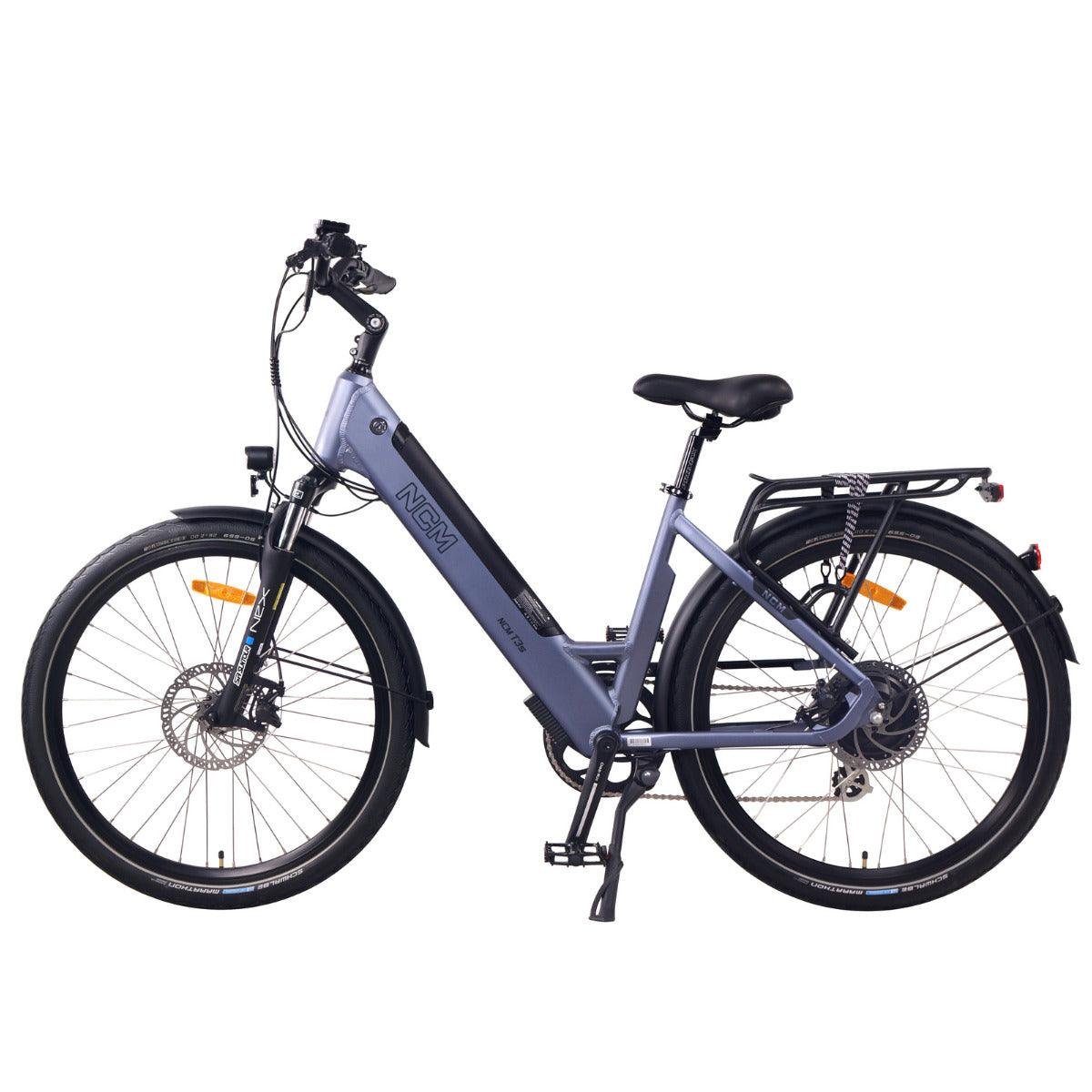

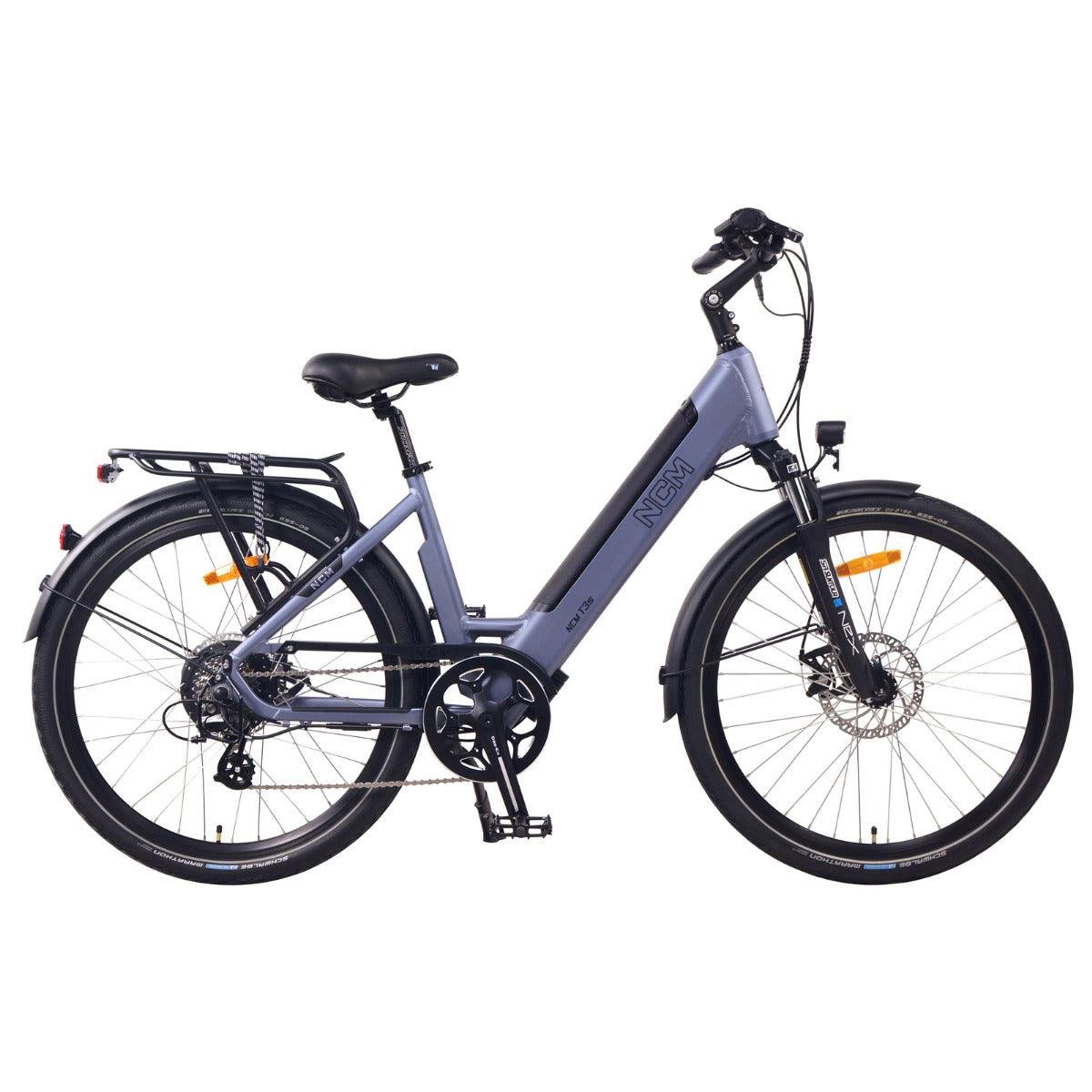

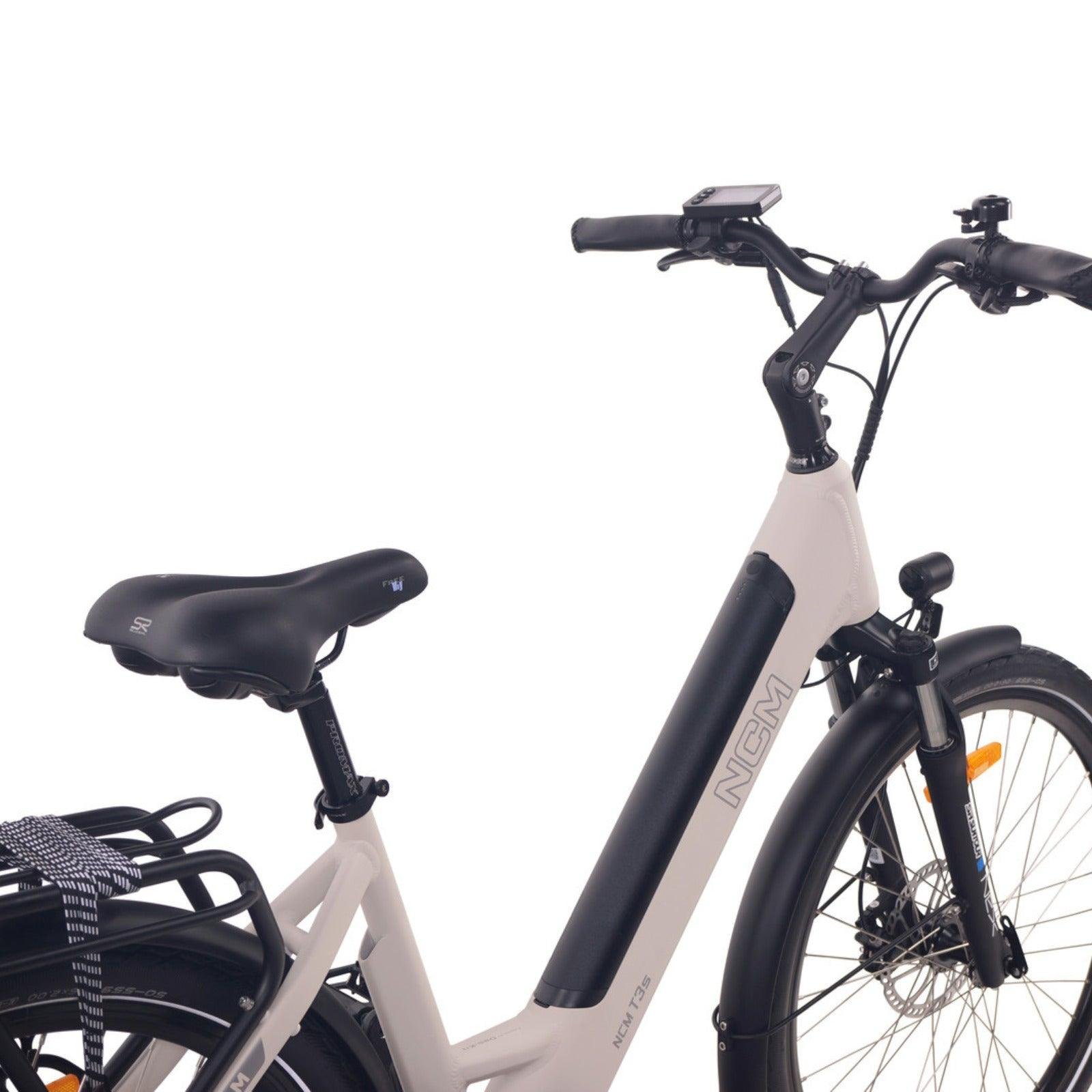

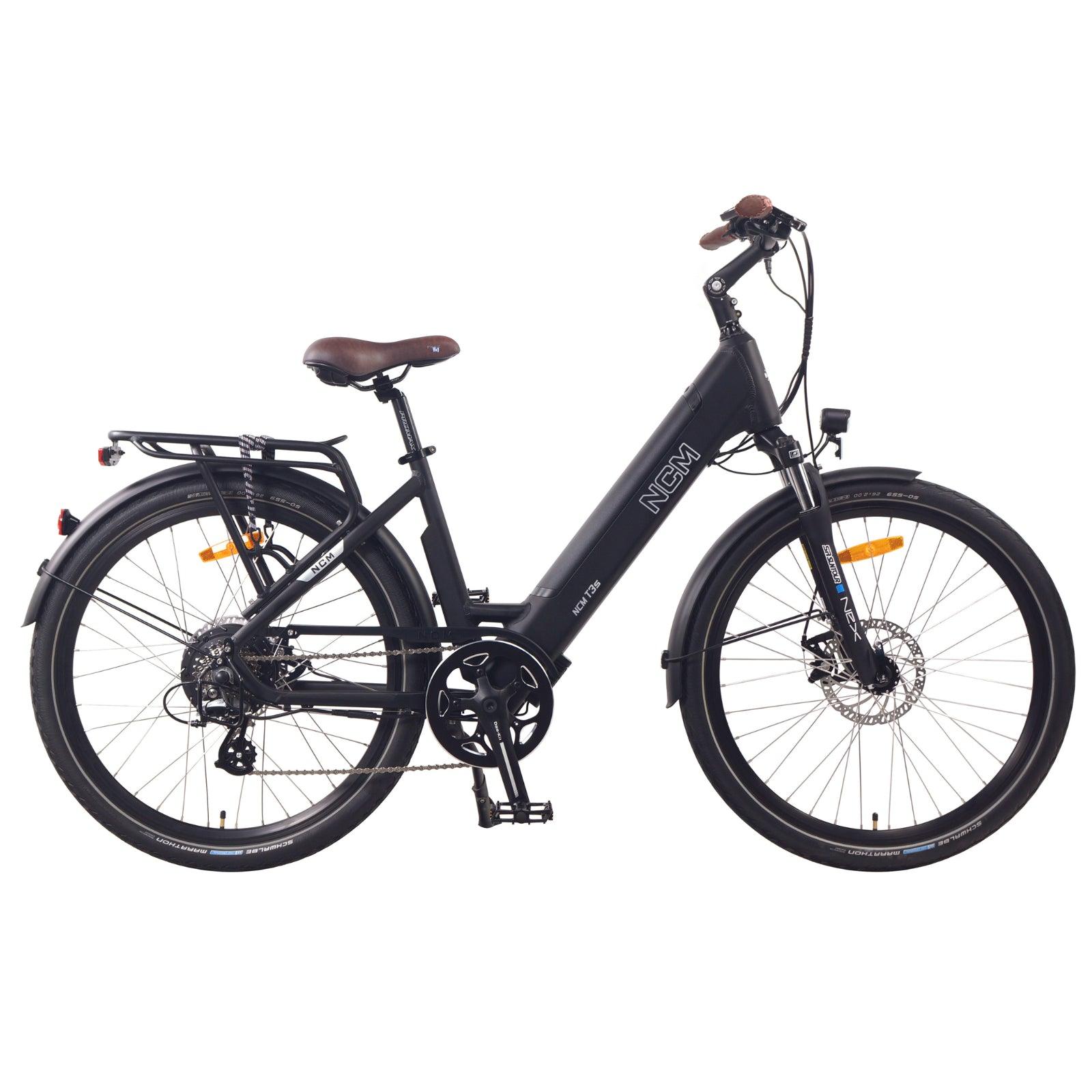

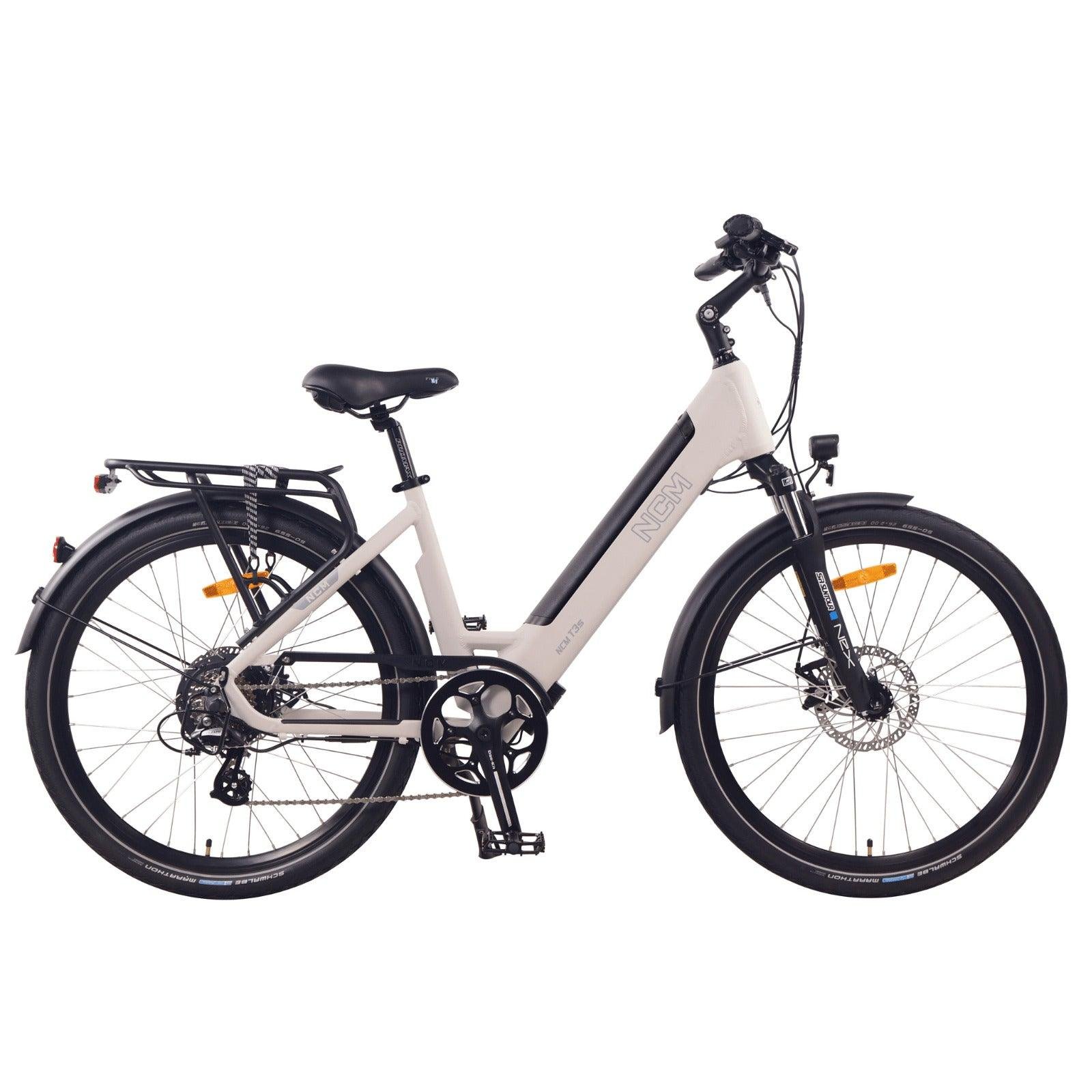

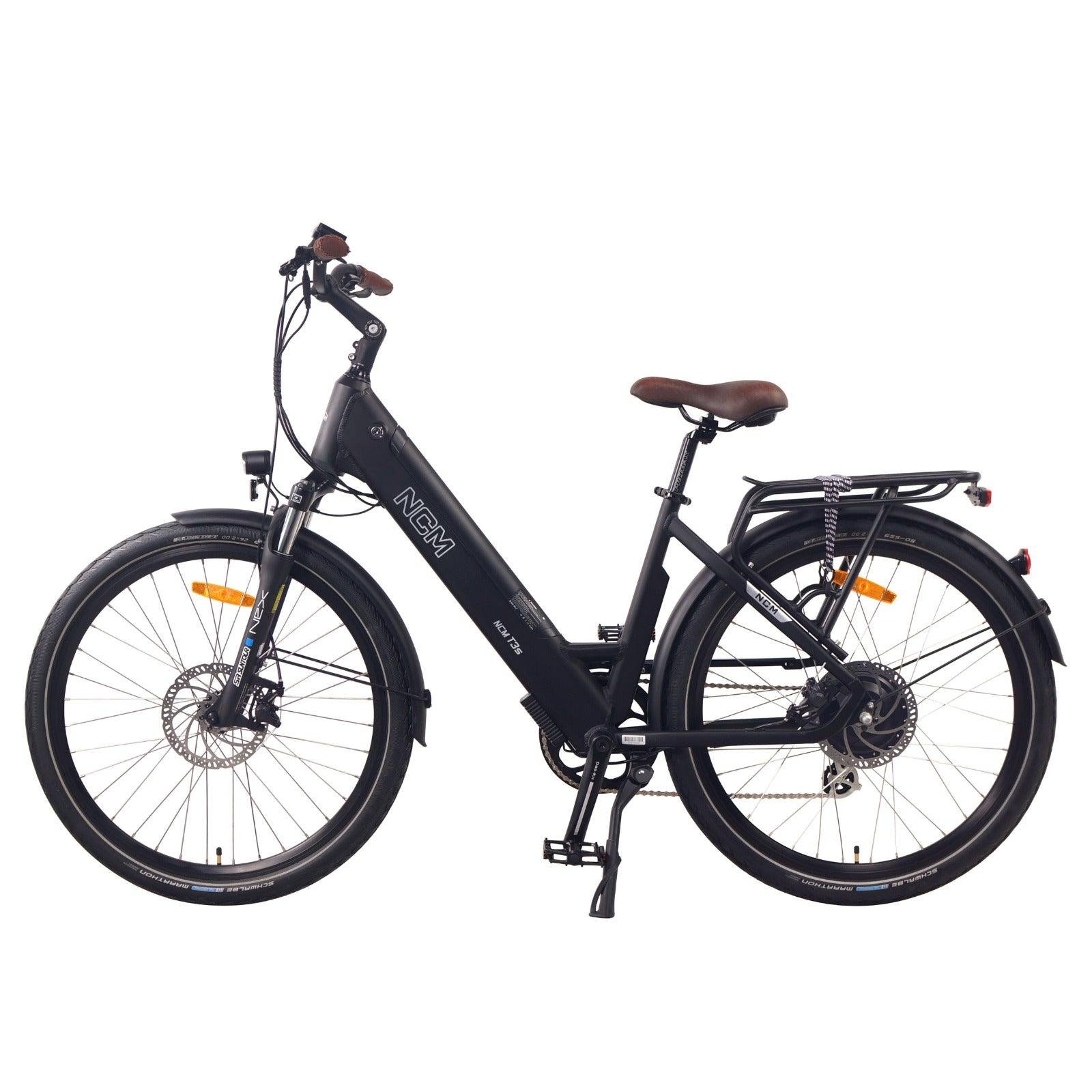

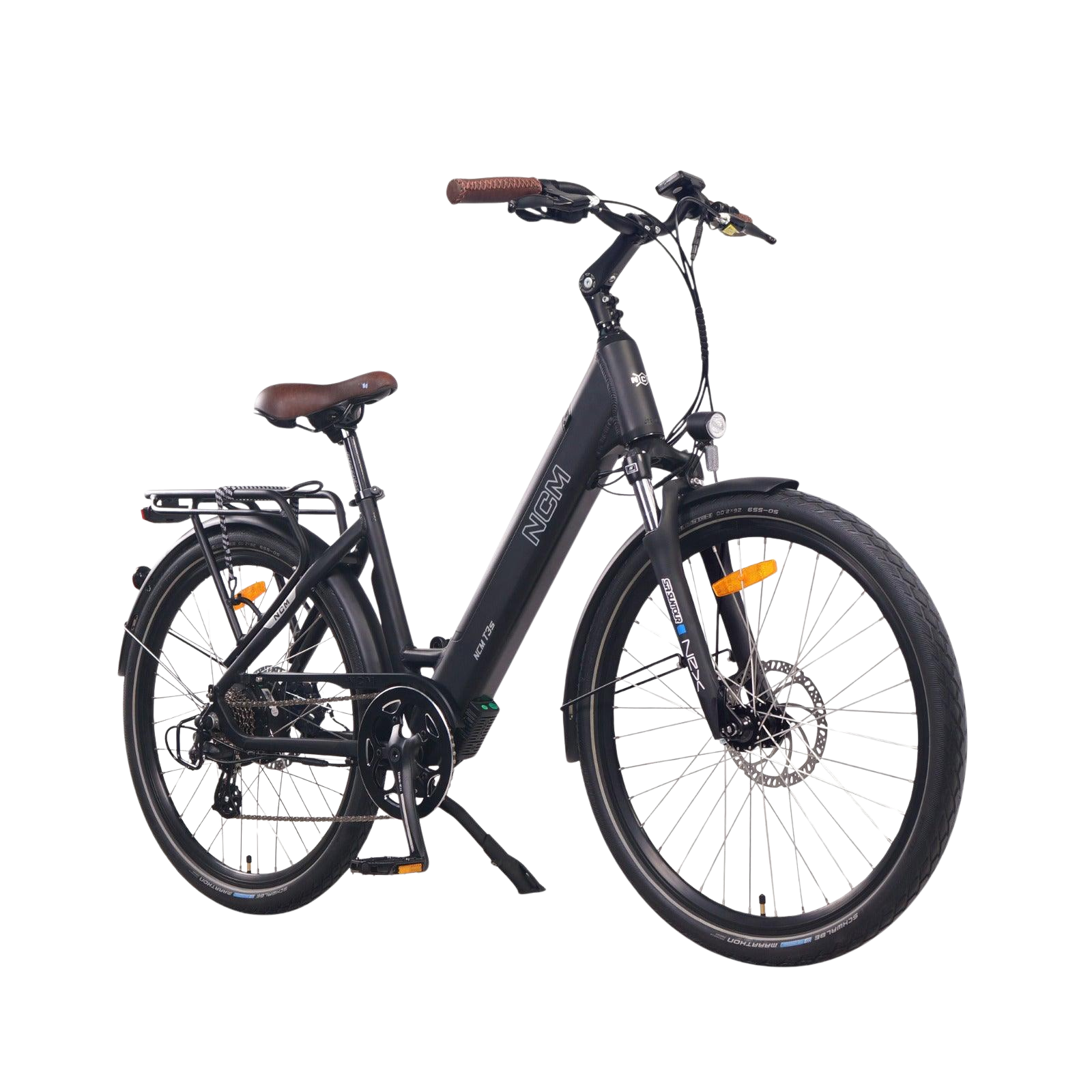

The new NCM Milano T3S is the brand new generation of the NCM brand. Successor to the flagship NCM Milano, it features new reinforced fully integrated and removable battery in the frame, a sleek new design, improved ergonomics and versatility ready to tackle any journey, short or long. The T3S offers more comfort and control than ever before and guarantees a pleasant ride thanks to an upright seating position, a low through frame and optimized ergonomics with adjustable handlebars and a gel-padded saddle.
Key Features
- Ergonomic bicycle Grips
- Comfortable sitting posture
- All important controls are easily accessible
- Supplied with 48V to deliver a high-output power
- Over 576Wh capacity for a longer distance
- Reach up to 110 km (depending on the conditions)

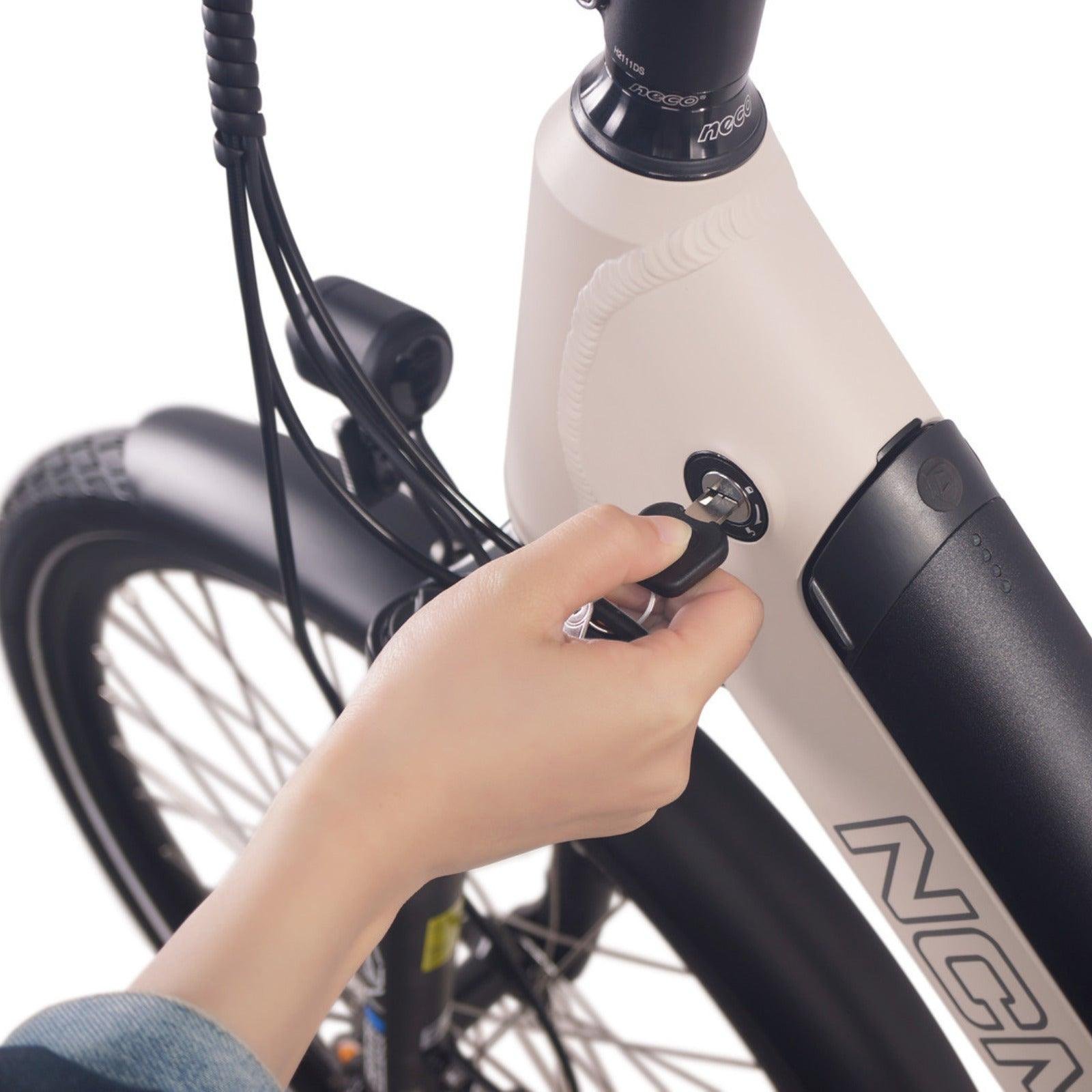

- Easily removable battery so you can charge it anywhere
| Das-Kit 250W Motor | Front Light | Integrated Battery | Rear Rack |
|---|---|---|---|
SPECIFICATIONS

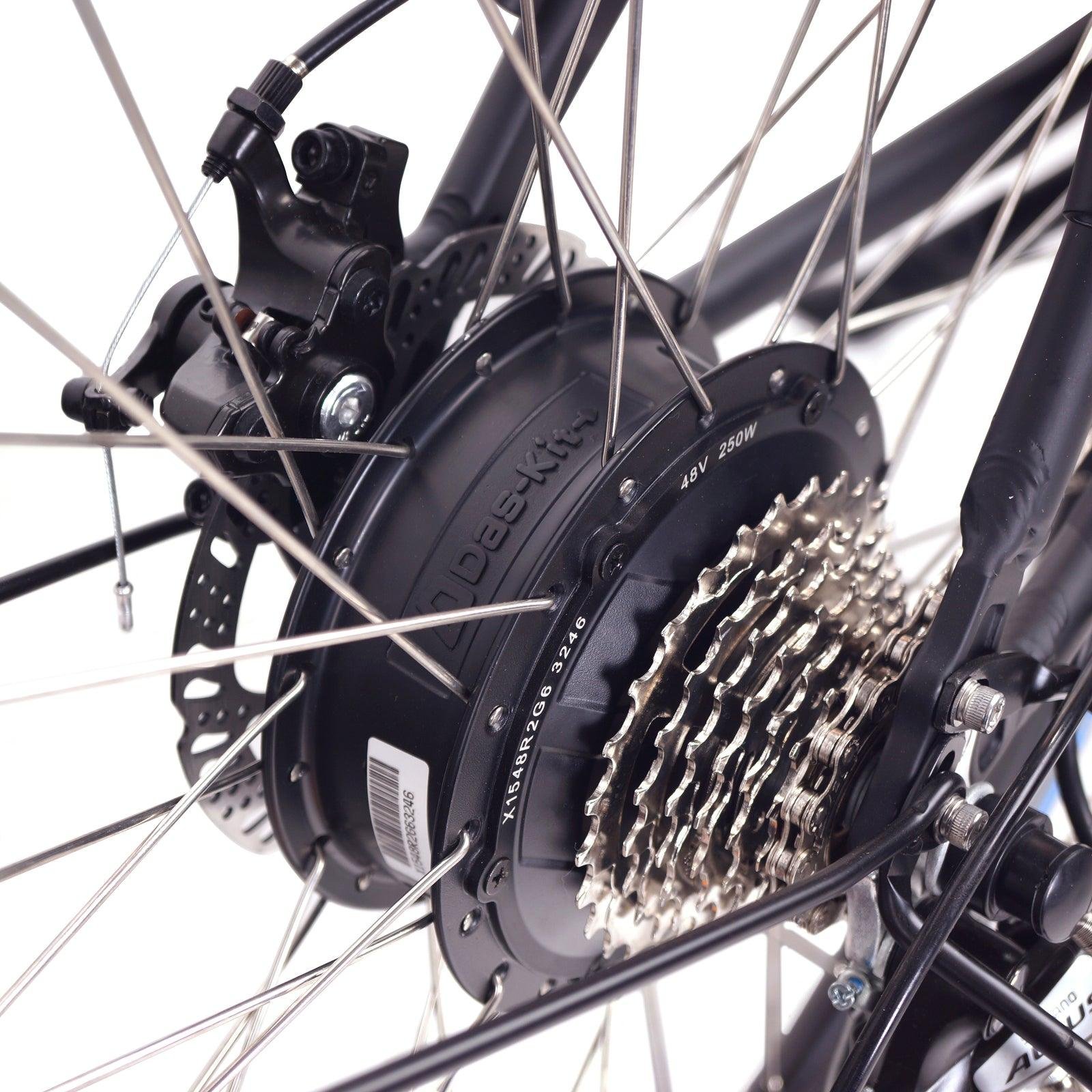

| Motor | Das-Kit X15 motor, 48V 250W, max speed 25 km/h |
| Battery | Battery: Das-Kit, I6, 48V 12Ah, 576Wh |

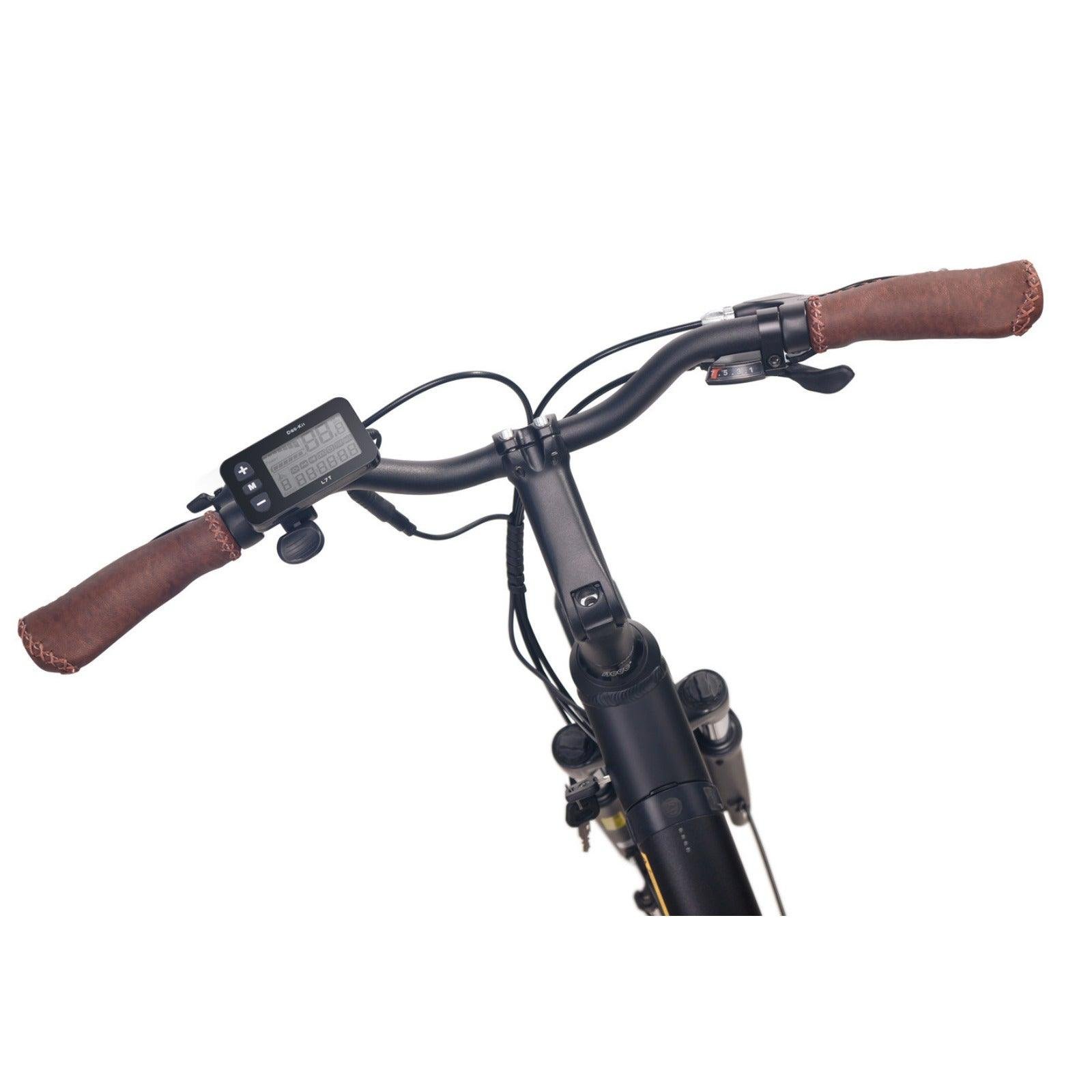

| Display | Das-Kit L7, LCD Display |
| Charger | DC483DE 48V 2A |
| Frame | Alu. 6061, 457/480MM |
| Forks | SUNTOUR NEX 63mm |
| Braking System | Tektro Hydraulic Disc |
| Gear Selector | Shimano Altus M310, 8 speed |
| Front Derailleur | N/A |
| Rear Derailleur | Shimano Acere M360, 8 speed |
| Saddle | Selle Royal Gel Saddle, Brown |
| Tyre | Shwalbe Marathon, 26×1.75 28×1.5 |
| Handle Grips | Velo, Brown Leather |
| Pedal | Wellgo, B087 |
| Range | Upto 110 km |
| Weight | 27 kg |
Sizing Chart
| cm | A | B | C | D | E | F | |
|---|---|---|---|---|---|---|---|
| Stand Over Height | Wheel Base | Frame Size | Min / Max Seat Height | Reach | Overall Length | ||
| Milano T3S 26″ | 160-188 | 78 | 104 | 51 | 88/108 | 39 | 174 |
Warranty
- 1-year warranty on all electronic parts (including battery, motor, controller, display, lights).
- 2-year warranty on the bike frame.
- Apart from manufacture defects that could be present, parts that wear due to normal use (such as tires, brake pads, chains, spokes, freewheel, tire puncture etc.) are not included in the warranty but maybe replaced on a case-by-case basis within the first six months.
- Our bikes are water resistant but not waterproof. Water damage is not covered under warranty.
About NCM
NCM Bikes, founded in 2014, has quickly become one of the largest pedelec and e-bike brands in Europe with the goal of expanding the market significantly in the near future. NCM is the perfect brand to start your pedelec experience whether you are an avid cyclist or a relative newcomer, we are committed to providing you with a range of high quality. Our innovative technologies ensure that we can differentiate ourselves from the competition and continue to offer the latest technologies. Our goal is to help improve the environment through a friendly riding experience and the promotion of a fun and active lifestyle.
Notes
In order to ensure our high-quality standard, our bicycles are subjected to a functional test at the factory. This can lead to dust deposits on the tyres and the seat post. Our bikes are only delivered pre-assembled, a final fine adjustment and inspection by the buyer or a third party is necessary (costs incurred for this cannot be covered). Before riding, please check all screws for strength and carry out a fine adjustment of the gears and brakes. Check the tyre pressure. Depending on the bicycle model, the final assembly and inspection of the components should take between 60 and 90 minutes.
IMPORTANT NOTICE
The laws around the use of scooters/e-bikes on public lands, roads and areas vary from state to state.
We recommend you always check your local council and road traffic laws prior to using a scooter/e-bike to ensure you are aware of any restrictions that may affect the use of motorised vehicles. Always use appropriate protective riding equipment such as an approved helmet and suitable clothing.
Note: Product assembly not included.
