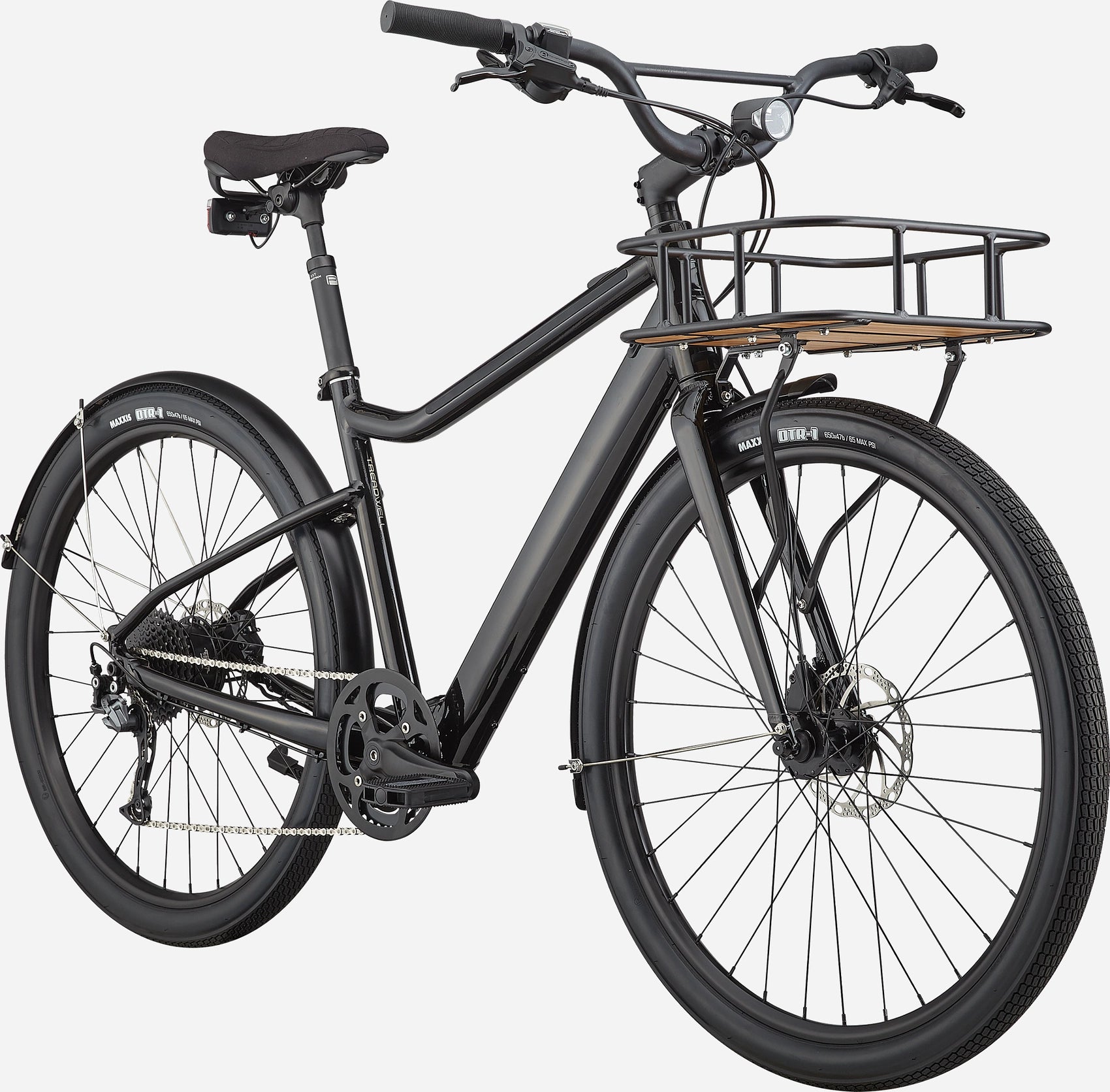

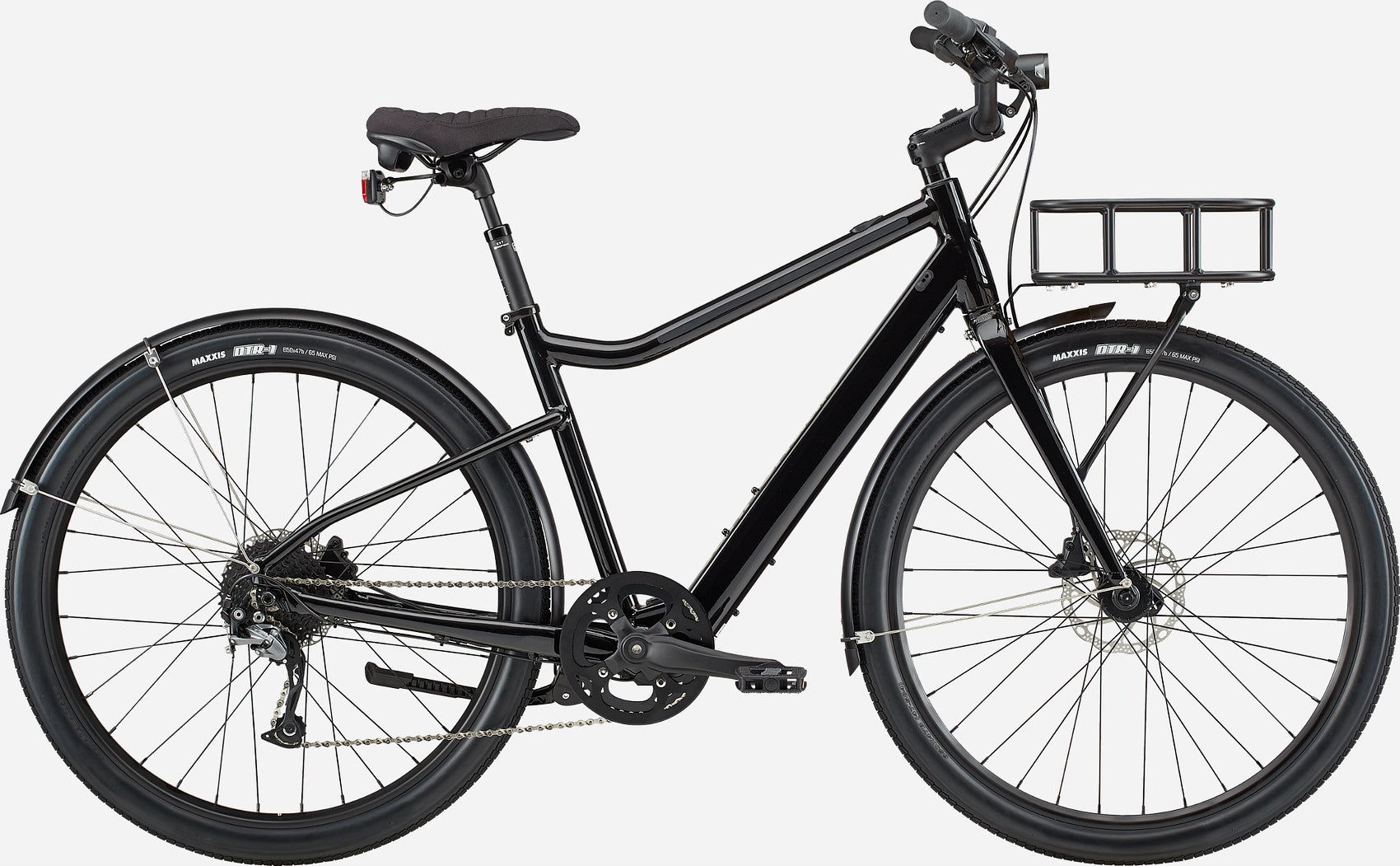

Cannondale Treadwell Neo EQ

Details

• Model Name
  Treadwell Neo EQ
• Model Code

  C63250M

Frameset

• Frame

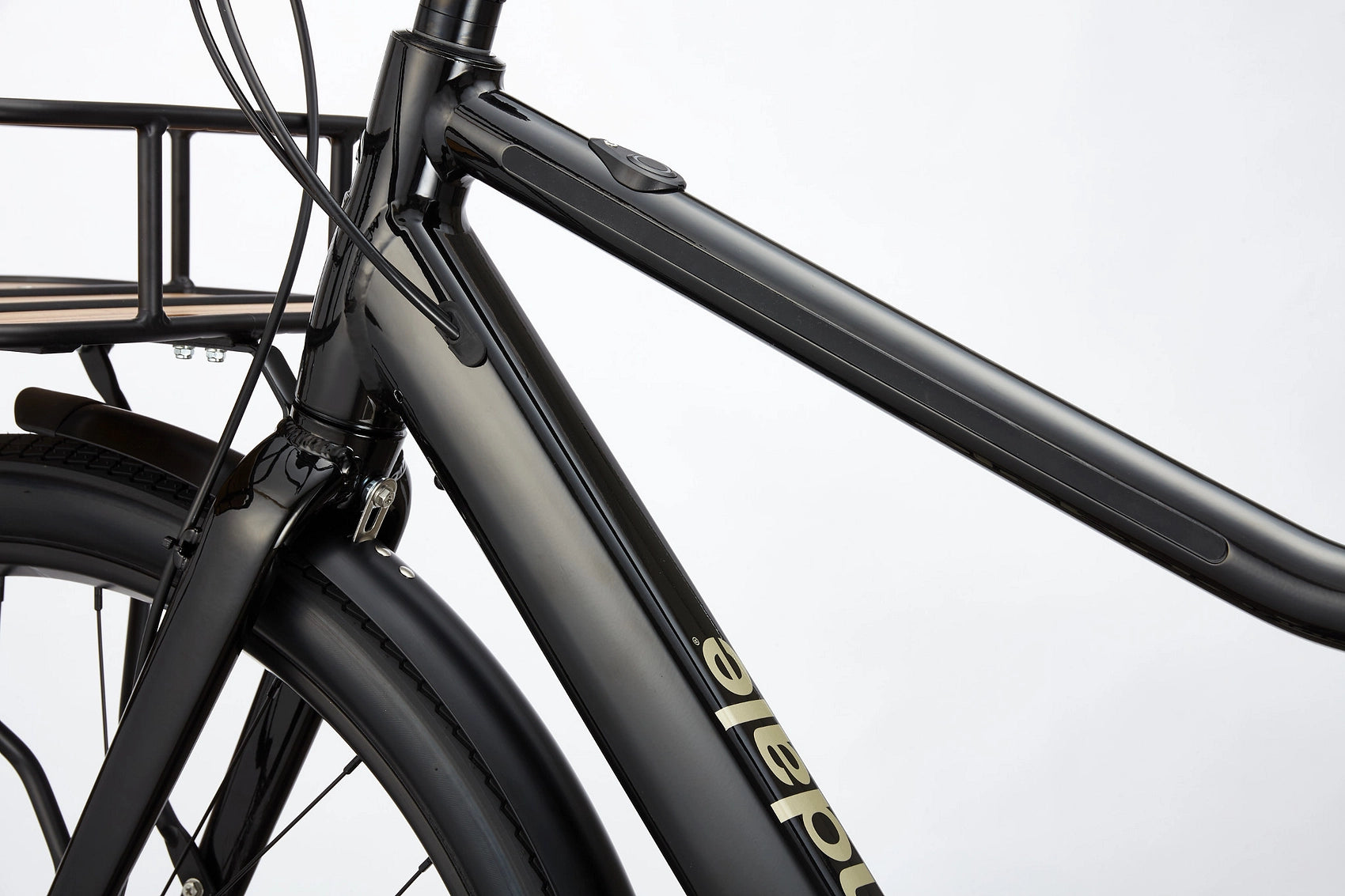

  SmartForm C3 Alloy, low standover Ride-Easy geometry, internal downtube battery, hidden cable routing, Urban Armor frame bumpers, flat mount disc, rack/fender mounts, kickstand mount
• Fork

  SmartForm C3 Alloy blades, 1-1/8″ steerer, OutFront offset, flat mount disc, mid-blade rack/fender mounts
• Headset

  FSA, Alloy, 1-1/8″ Ahead, semi-integrated

E-System

• Drive Unit

  Mahle X35 250W
• Battery

  Mahle X35, 250Wh
• Charger

  Mahle X35
• Display

  Mahle iWOC ONE integrated controller, iWOC Trio, smartphone app with Intellimount stem

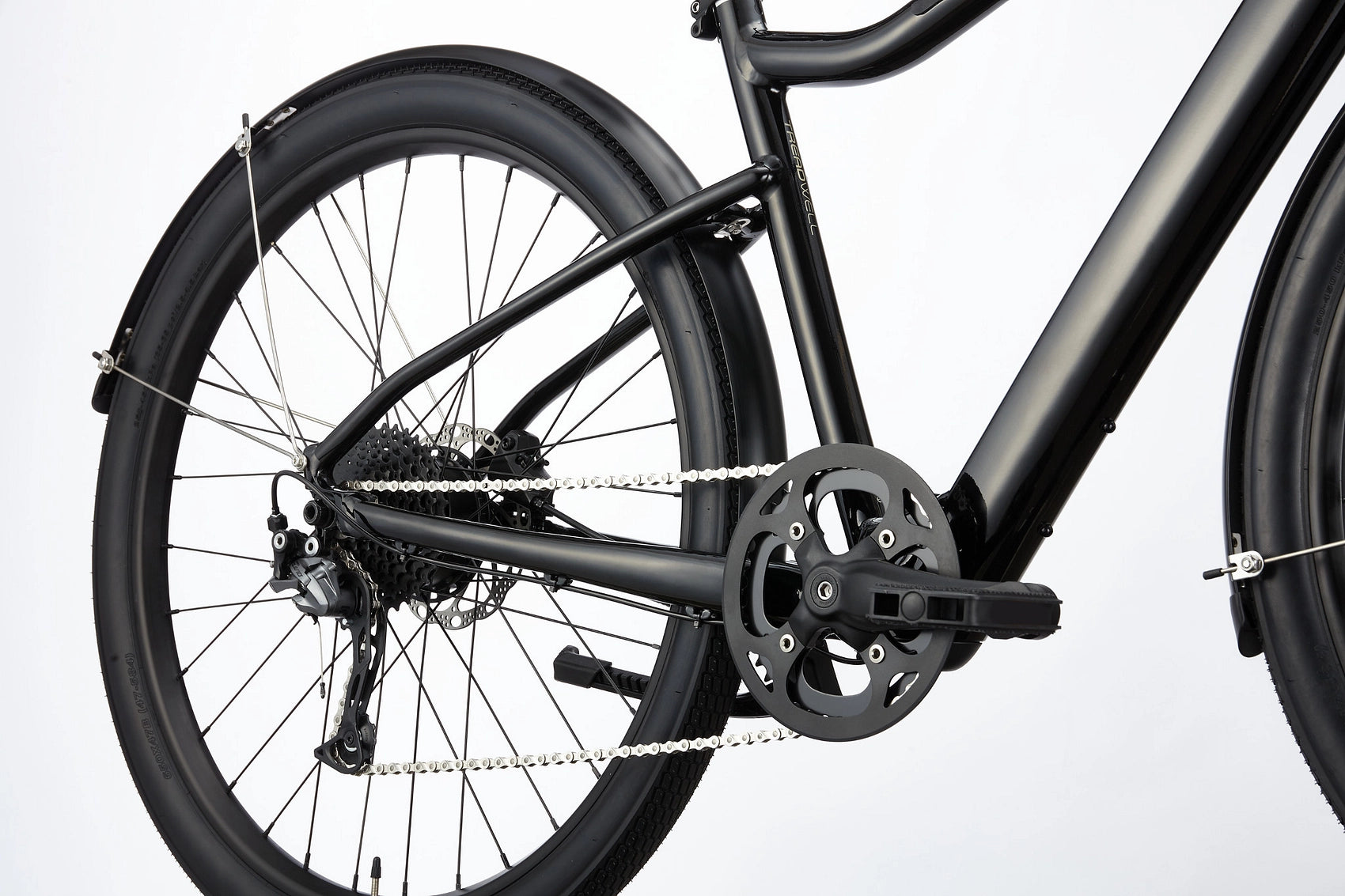

Drivetrain

• Rear Derailleur

  microSHIFT M45S
• Shifters

  microSHIFT M859, 9-speed
• Chain

  KMC E9T, 9-speed
• Crank

  Prowheel, 38T
• Rear Cogs

  microSHIFT, 11-36, 9-speed
• Bottom Bracket

  Cartridge, sealed

Brakes

• Brakes

  Tektro HD-R280 hydraulic disc, 160/140mm rotors
• Brake Levers

  Tektro hydraulic disc

Wheels

• Front Hub

  Sealed Alloy Disc, 12x100mm
• Rear Hub

  Mahle X35 250W
• Brake Type

  Disc
• Rims

  Cannondale Disc, double wall w/eyelet, 32h
• Spokes

  Stainless Steel, 14g
• Tire Size

  47
• Wheel Size

  27.5
• Tires

  Maxxis DTR-1, 650bx47c
• Front Tire

  Maxxis DTR-1, 650bx47c
• Rear Tire

  Maxxis DTR-1, 650bx47c

Components

• Handlebar

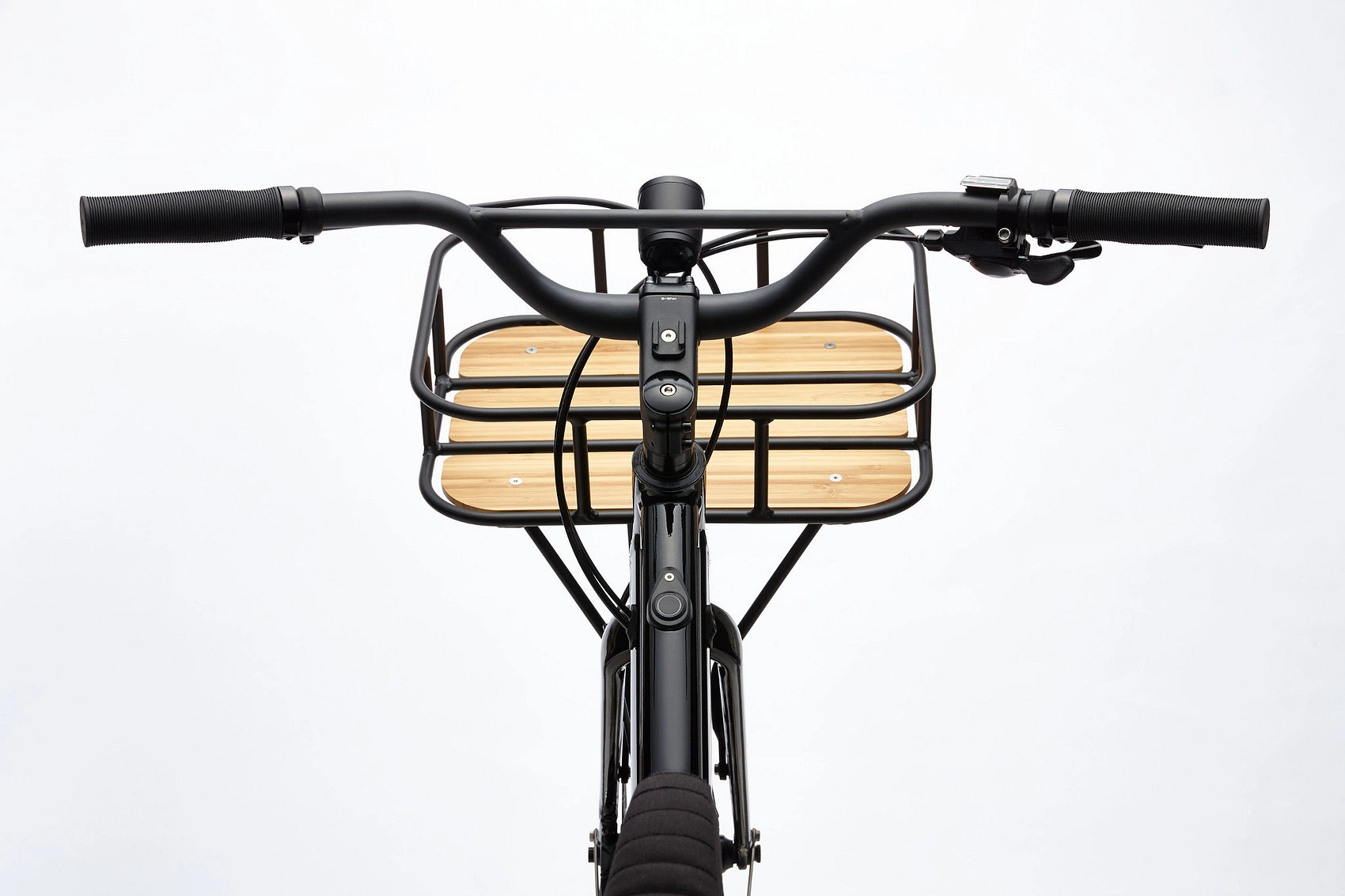

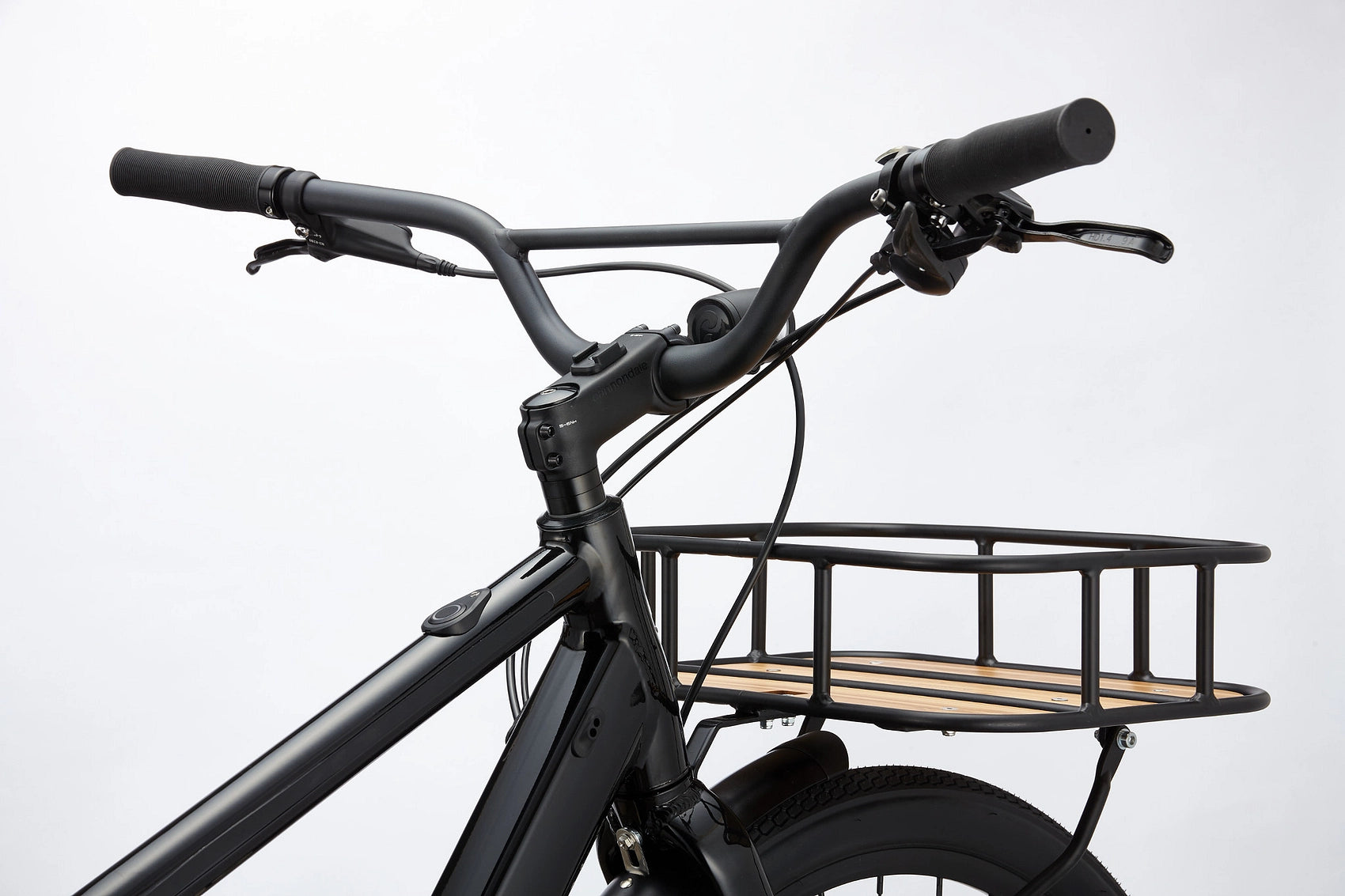

  Cannondale Cruise Control riser, 6061 Alloy, 31.8mm, 15° back, 740mm
• Stem

  Cannondale 3 with Intellimount with high direct light mount, Alloy, 31.8mm clamp
• Grips

  Cannondale Comfort
• Saddle

  Cannondale Treadwell, 170mm, steel rails
• Seatpost

  Promax Suspension Seatpost, 31.6, 40mm

Connectivity

• Wheel Sensor

  Cannondale Wheel Sensor

Extra

• Extra 1

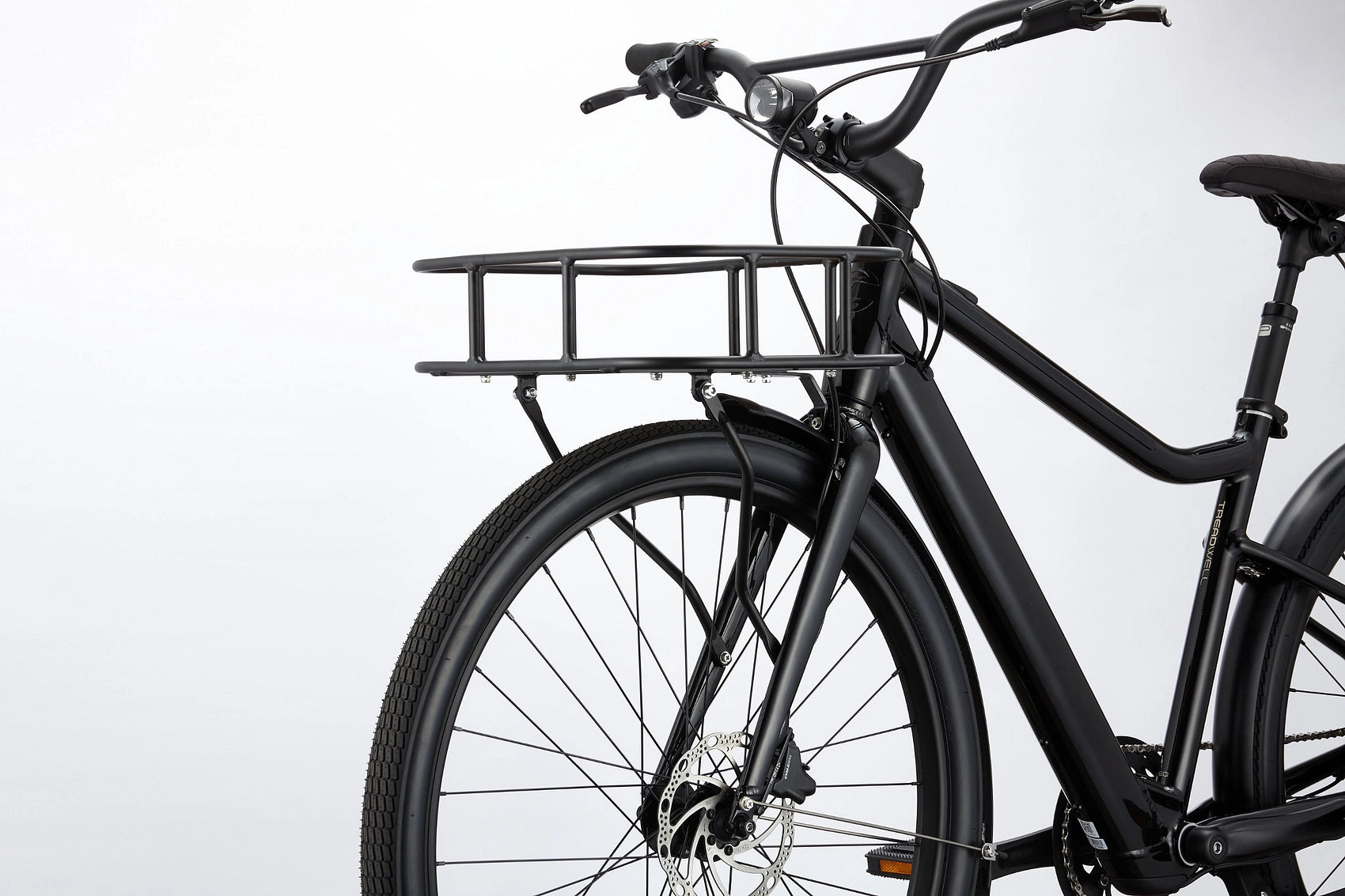

  Herrmans H-Black MR8 front light / Herrmans H-trace rear light, fenders, front rack (10kg max capacity), kickstand, Cannondale Wheel Sensor
